Rich-Art



Posts: 120
Joined: 29 Dec 2005

PostPosted: Fri Jun 19, 2009 10:49 am    Post subject: Aston Martin body Reply with quote

Hi All,

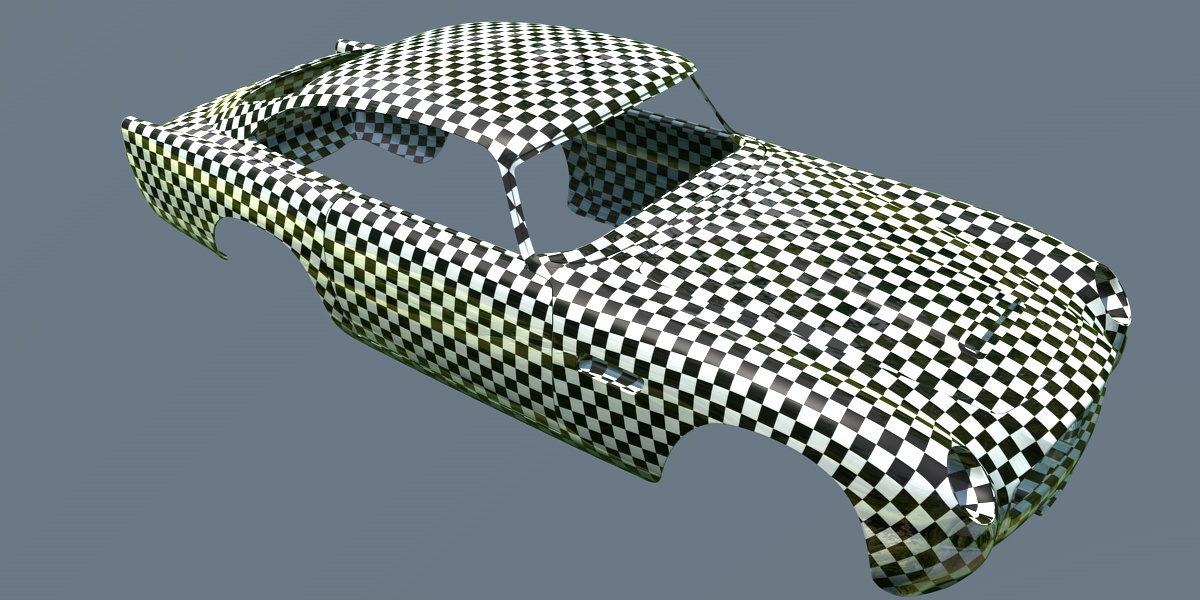

Here is a little test from an Aston Martin. (modelled by Morris)
UVLayout does the job great as you can see.


Peace,
Rich_Art. Wink



 Description:
 Filesize:  243.65 KB
 Viewed:  8022 Time(s)



Back to top
View user's profile Send private message Visit poster's website
Rich-Art



Posts: 120
Joined: 29 Dec 2005

PostPosted: Fri Jun 19, 2009 10:50 am    Post subject: Reply with quote

And here is the UV map.


Peace,
Rich_Art. Wink



 Description:
 Filesize:  96.25 KB
 Viewed:  8021 Time(s)



Back to top
View user's profile Send private message Visit poster's website
headus
Site Admin


Posts: 2873
Joined: 24 Mar 2005
Location: Perth, Australia

PostPosted: Fri Jun 19, 2009 10:34 pm    Post subject: Reply with quote

Thanks for showing us your work! A couple of tips ...

1) Use Shift-T on the boundary of the headlight holes in the body shell. UVLayout will then make them rounder, which should help with the distortion in that area.

2a) Assuming that the car body is symmetrical, you can use the Symmetry Find tool after its already been flattened out ... just pick a mirror line edge in the 3D view. You'll then be able to use the S hotkey to make the UVs perfectly symmetrical.

2b) If the car body isn't symmetrical, you may still be able to tweak the UVs using the Snap/Stack tool. As long as the boundary edges on the left and right halves match, then you can use the Snap/Stack "Symm" tool to make the boundaries symmetrical, then you reflatten to sort out the interior UVs.

Phil
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Rich-Art



Posts: 120
Joined: 29 Dec 2005

PostPosted: Sat Jun 20, 2009 12:31 am    Post subject: Reply with quote

Thanks for the Tips Phil. Very Happy
I'll try these tips on the Aston map.

Peace,
Rich_Art. Wink
Back to top
View user's profile Send private message Visit poster's website
