There may be occasions when you only want to slice through a particular section of the entire mesh. You can accomplish this by hiding the parts of the mesh that you don't want to slice.

Or, when drawing networks, its very handy sometimes to be able to zoom into a detailed area. You can then work solely on that, without all the surrounding network graphics or mesh getting in the way. Again, you can easily do this by hiding the bits you don't want to see.

There are a hand-full of hiding operations, all accessed via the <h> key.

[click to zoom]
Figure 6. Hiding Faces

Figure 6 shows you what you get once you have hit the <h> key.

Hiding With the Box

If you draw out a box with the left mouse button, then all faces inside this box will be hidden (see left side Figure 7).

[click to zoom]
Figure 7. Hiding With the Box

If, however, you draw out a box with the right mouse button, then all faces outside the box are hidden (see right side Figure 7).

Hiding Marked Faces - <g> key

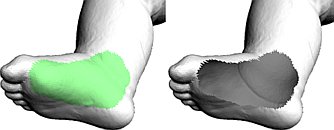

You can hide all the marked faces by typing <g> (see Figure 8).

[no zoom]
Figure 8. Hiding Marked Faces


Hiding Using Filling - <f> key

Typing <h> <f> is a shortcut version of the surface hiding sequence <g> <f> <h> <g>. Because it uses the marking mechanism to select the faces, any other faces that happen to be marked, other than the ones you select, will also be hidden.

Swapping Hidden Faces - <s> key

Type <s> to swap the visible and hidden faces.

Showing Hidden Faces - <u> key

Type <u> to unhide all hidden faces.

Zoom In On Visible Faces - <5> keypad

You can zoom in on the remaining visible faces by hitting the <5> key on the keypad, or by hitting the <Home> key. This can be very handy.
